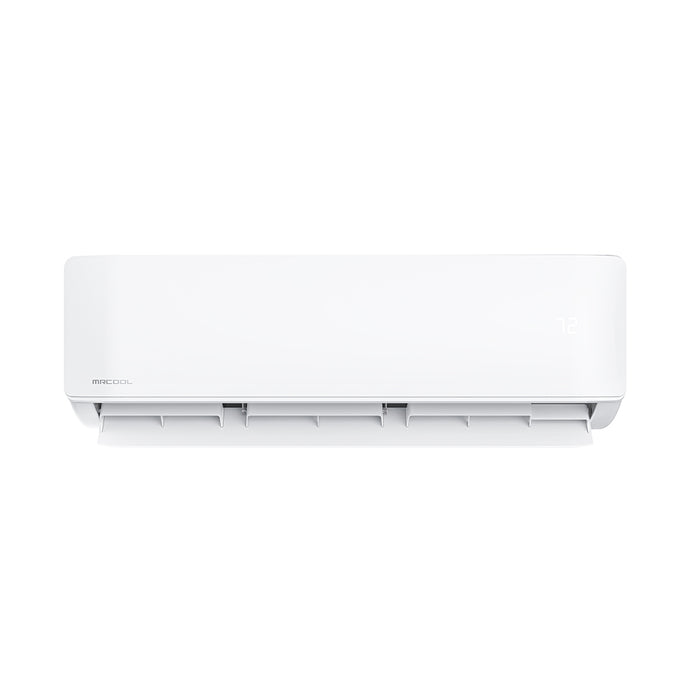

Name: MRCOOL DIY 4th Gen Wall Mount Air handler 230V/60Hz with Enhanced WiFi
Brand: MRCOOL
SKU: DIY-09-HP-WMAH-230C25
Price: 442.0 USD
Availability: InStock
Rating: 5.0 (34 reviews)

MRCOOL DIY 4th Gen Wall Mount Air handler 230V/60Hz with Enhanced WiFi

by MRCOOL

SKU DIY-09-HP-WMAH-230C25

Save 69%

$1,449.00

$774.90 - $1,619.00

$1,449.00

$442.00

$442.00 - $1,188.00

$442.00

Availability:

In stock

Availability:

In stock

Availability:

In stock

Availability:

In stock

Availability:

In stock

Quantity

Free Shipping!

This product is estimated to arrive between Jan 01 to Jan 07

Description

The MRCOOL® DIY 4th Gen Wall Mount Air Handler 230V/60Hz with Enhanced WiFi is an essential component of the MRCOOL® DIY system, offering exceptional efficiency. With various operating modes including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP, this unit is incredibly versatile and can be easily controlled with an Apple or Android smartphone using the Smart HVAC app. Its compact design allows for straightforward installation on most interior walls, with the included mounting plate. For even simpler installation, use MrCool's patented Pre-Charged Quick Connect Line Set, which comes pre-charged with the correct amount of R-410A refrigerant, eliminating the need for vacuuming.

SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Compatible with Amazon Alexa and Google Assistant
Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

Specifications

9,000 BTU Air Handler

Product Dimensions	31.57"W x 7.44"D x 11.69"H
Product Weight	23.81 lbs
Cooling Capacity	9,000 BTU
Heating Capacity	9,000 BTU
Voltage	Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60 Hz
Max Fuse Breaker	15 A
Min Circuit Ampacity	3 A
Mount Type	Wall
Color	White
Max Coverage Area	Up to 375 sqft
Refrigerant Type	R-410A
Inverter	Yes
Liquid Line Size	1/4 in
Suction Line Size	1/2 in
Blower Motor RPM	1050/850/650
Noise Level	25 - 40 dBA
Modes	Fan Only Quiet Mode Auto Cool
Wifi Compatibility	Yes
App Compatibility	Yes
Compatible with	IOS Android
Includes	Remote Batteries
Certifications	Energy Star AHRI
Warranty	5-year Parts/7-year Compressor
Restricted States	GU;PR;VI

12,000 BTU Air Handler

Product Dimensions	31.57"W x 7.44"D x 11.69"H
Product Weight	23.81 lbs
Cooling Capacity	12,000 BTU
Heating Capacity	12,000 BTU
Voltage	Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60 Hz
Max Fuse Breaker	15 A
Min Circuit Ampacity	3 A
Mount Type	Wall
Color	White
Max Coverage Area	Up to 500 sqft
Refrigerant Type	R-410A
Inverter	Yes
Liquid Line Size	1/4 in
Suction Line Size	1/2 in
Blower Motor RPM	1050/850/650
Noise Level	25 - 40 dBA
Modes	Fan Only Quiet Mode Auto Cool
Wifi Compatibility	Yes
App Compatibility	Yes
Compatible with	IOS Android
Includes	Remote Batteries
Certifications	Energy Star AHRI
Warranty	5-year Parts/7-year Compressor
Restricted States	GU;PR;VI

18,000 BTU Air Handler

Product Dimensions	42.52"W x 8.90"D x 13.19"H
Product Weight	34.61 lbs
Cooling Capacity	18000 BTU
Heating Capacity	18000 BTU
Voltage	Requires a minimum of 208V-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60 Hz
Mount Type	Wall
Color	White
Max Coverage Area	Up to 750 sqft
Refrigerant Type	R-410A
Decibel Rating	44.5/37/31
Decibel Rating Low	31 dBA
Decibel Rating High	44.5 dBA
Inverter	Yes
Max Lineset Length	98.42 ft
Liquid Line Size	1/4 in
Suction Line Size	1/2 in
Blower Motor RPM	1120/950/700
Modes	Fan Only Quiet Mode Auto Cool
Wifi Compatibility	Yes
App Compatibility	Yes
Compatible with	IOS Android
Includes	Remote Batteries
Certifications	Energy Star AHRI
Warranty	5-year Parts/7-year Compressor
Restricted States	GU;PR;VI

24,000 BTU Air Handler

Product Dimensions	42.52"W x 8.90"D x 13.19"H
Product Weight	35.27 lbs
Cooling Capacity	23,000 BTU
Heating Capacity	25,000 BTU
Voltage	Requires a minimum of 208V-230V/60HZ/22-35A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60 Hz
Mount Type	Wall
Color	White
Max Coverage Area	Up to 1000 sqft
Refrigerant Type	R-410A
Decibel Rating	48.5/43.5/33
Decibel Rating Low	33 dBA
Decibel Rating High	48.5 dBA
Inverter	Yes
Max Lineset Length	98.42 ft
Liquid Line Size	3/8 in
Suction Line Size	5/8 in
Blower Motor RPM	1200/1000/700
Modes	Fan Only Quiet Mode Auto Cool
Wifi Compatibility	Yes
App Compatibility	Yes
Compatible with	IOS Android
Includes	Remote Batteries
Certifications	Energy Star AHRI
Warranty	5-year Parts/7-year Compressor Register for limited lifetime compressor warranty!
Restricted States	GU;PR;VI

36,000 BTU Air Handler

Product Dimensions	49.57"W x 11.10"D x 14.25"H
Product Weight	47.84 lbs
Cooling Capacity	36,000 BTU
Heating Capacity	36,000 BTU
Voltage	Requires a minimum of 208V-230V/60HZ/28-35A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60 Hz
Mount Type	Wall
Color	White
Max Coverage Area	Up to 1500 sqft
Refrigerant Type	R-410A
Decibel Rating	52/45/34
Decibel Rating Low	34 dBA
Decibel Rating High	52 dBA
Inverter	Yes
Max Lineset Length	213.25 ft
Liquid Line Size	3/8 in
Suction Line Size	5/8 in
Blower Motor RPM	1200/950/750
Modes	Fan Only Quiet Mode Auto Cool
Wifi Compatibility	Yes
App Compatibility	Yes
Compatible with	IOS Android
Includes	Remote Batteries
Certifications	Energy Star AHRI
Warranty	5-year Parts/7-year Compressor
Restricted States	GU;PR;VI

Manuals & Guides

Installation Manual
Product Brochure
Quick Start Setup Guide
Troubleshooting Guide
Performance Specs
Remote Control Manual
Warranty

FAQs

What size DIY Mini Split do I need?

Get ready to tailor your comfort with precision! Here's what you need to consider:

The Size of the Area to Heat / Cool (Square Feet)
Your Local Climate (Is it sizzling hot or icy cold for prolonged periods?)
Insulation (From drafty spaces to snug havens, insulation plays a crucial role)
Basic Sizing based on Square Footage alone:

9K BTU = 180 to 375 Sq Ft.
12k BTU = 376 to 500 Sq Ft.
18k BTU = 501 to 750 Sq Ft.
24k BTU = 751 to 1,000 Sq Ft.
36k BTU = 1,001 to 1,500 Sq Ft.

Still need help? Get in touch with our HVAC Experts!

Check out our blog 'Sizing Your Mini Split'

Can I mix and match Wall Mount and Ceiling Cassettes Air Handlers?

Yes, of course! Get in touch with one of our HVAC experts and we can put together a custom package for you.

What is the operational temperature range for DIY Mini Splits?

The operational temperature range for DIY air conditioning units varies based on whether it's a Multi-Zone or Single-Zone system:

Multi-Zone:

For the 4th Gen Multi-Zone 18k – 36k condensers:

Heating: -13°F to 75.2°F (outside temperature)
Cooling: 5°F to 122°F (outside temperature)

For the 4th Gen Multi-Zone 48k condensers:

Heating: 5°F to 75.2°F (outside temperature)
Cooling: 5°F to 122°F (outside temperature)

Indoors, at the thermostat:

Cooling: 62°F to 90°F
Heating: 32°F to 86°F

Single-Zone:

For the 4th Gen Single Zone 12K – 24k condensers:

Heating: -13°F to 75°F (outside temperature)
Cooling: -13°F to 122°F (outside temperature)

For the 4th Gen Single Zone 36k condensers:

Heating: 5°F to 75°F (outside temperature)
Cooling: 5°F to 122°F (outside temperature)

Indoors, at the thermostat:

Cooling: 62.2°F to 89.6°F
Heating: 32°F to 86°F

What can I do about the excess coil/line set length?

It is recommended to leave the remaining/excess line set coiled horizontally near the condenser and wrapped with protective tape. This will not impact performance whatsoever.
